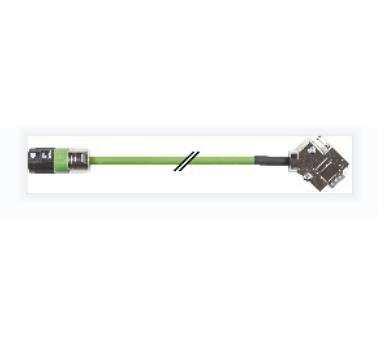

8CE007.12-1 B&R ACOPOS Cable

MATERIAL NUMBER:

8CE007.12-1

DESCRIPTION:

Can be used in cable drag chains
Assembled specifically for use with ACOPOS servo drives and B&R servo motors

EnDat 2.1 cable, length 7 m, 10x 0.14 mm² + 2x 0.5 mm², 17-pin female Intercontec EnDat connector, 15-pin male DSUB servo connector, can be used in cable drag chains

General information

Cable cross section	5x 2x 0.14 mm² + 1x 2x 0.50 mm²
Durability	Oil resistance per VDE 0472 Part 803 as well as standard hydraulic oils
Certification	UL AWM Style 20963, 80°C, 30 V, E63216 and CSA AWM I/II A/B, 90°C, 30 V, FT1 LL46064
Certifications
CE	Yes
UL	cULus E225616 Power conversion equipment

Cable construction

Supply lines
Quantity	2
Wire insulation	Special thermoplastic material
Wire colors	White/Green, white/red
Variant	Tinned copper stranded wire
Cross section	0.5 mm²
Shield	No
Stranding	White/Red with white/green and filler elements
Signal line
Quantity	10
Wire insulation	Special thermoplastic material
Wire colors	Blue, brown, yellow, gray, green, pink, red, black, violet, white
Variant	Tinned copper stranded wire
Cross section	0.14 mm²
Shield	No
Stranding	Green with brown, gray with yellow, white with violet, black with red, pink with blue
Cable stranding	With foil shield
Cable shield	Copper braiding, optical coverage >85% and wrapped in foil shield
Outer jacket
Material	PUR
Color	Green, similar to RAL 6018 flat
Labeling	BERNECKER + RAINER 5x2x0.14+2x0.50 FLEX UL AWM STYLE 20963 80°C 30 V E63216 CSA AWM I/II A/B 90°C 30 V FT1 LL46064

Connector

Type	17-pin female Intercontec EnDat connector
Mating cycles	<500
Contacts	17
Additional connectors	15-pin male DSUB servo connector Connection cycles: <200 Contacts: 15 Degree of protection per EN 60529: IP20 when connected
Degree of protection per EN 60529	IP66/67 when connected

Electrical properties

Operating voltage	≤30 V_eff
Test voltage
Wire - Wire	1 kV
Wire - Shield	0.8 kV
Conductor resistance
Supply lines	≤40 Ω/km
Signal line	≤140 Ω/km
Insulation resistance	>200 MΩ*km

Ambient conditions

Temperature
Moving	-20°C to +80°C
Static	-20°C to +90°C

Mechanical properties

Dimensions
Length	7 m
Diameter	7.85 mm ± 0.2 mm
Bend radius
Single bend	≥24 mm
Moving	≥60 mm
Drag chain data
Acceleration	≤6 g
Flex cycles	>3,000,000
Velocity	≤4 m/s
Weight	0.56 kg
