HEIDENHAIN Angle Encoders have series of RCN, ROC, ROC, and ROD. We have Heidenhain RON 785, RON 786, RON 886 incremental angle encoders in warehouse and can provide our customers with fast delivery.
RCN 700, RON 800 incremental angle encoders for high productivity.
Features:
- System accuracy of ±1” / ±2”
- Integrated stator coupling
- Hollow through shaft with ∅ 50 mm / ∅ 60 mm
- Signal periods per revolution: up to 180 000
- Interface: 1 VPP
Technical Data:

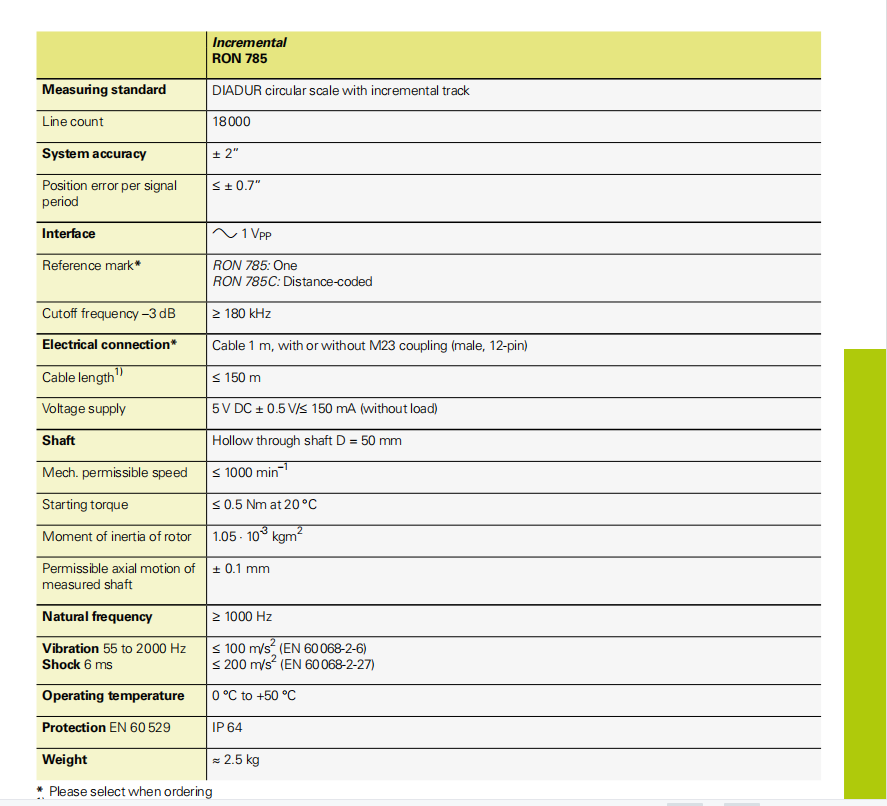

HEIDENHAIN RON 785, RON 786, RON 886 angle encoders feature a line count of up to 90,000 lines, very high system accuracies and sinusoidal output signals. For Details pls see attached PDF data sheet.
HEIDENHAIN Incremental Angle Encoder RON 705, RON785, RON786, RON886
355886-04 |
RON 886C |
36000 |
355886-07 |
RON 886C |
36000 |
355886-01 |
RON 886 |
36000 |
355886-09 |
RON 886 |
36000 |
355886-11 |
RON 886 |
36000 01 -03 K 3.00 02 29A54C 64 01 .. RA ~1Vpp 07 |
355886-11 |
RON 886 |
36000 |
355886-12 |
RON 886 |
36000 |
355884-04 |
RON 786C |
18000 |
355884-01 |
RON 786 |
18000 |
355884-17 |
RON 786 |
18000 |
355880-12 |
RON 785C |
|
355880-05 |
RON 785 |
18000 |
355879-01 |
RON 705 |
18000 |
355879-21 |
RON 705 |
18000 |
292380-01 |
RON 705 |
.0000-18000 RA KG01.00TB |
