An encoder is a sensor that converts mechanical motion (position, speed, or direction) into electrical signals that a control system can interpret.
Encoders are essential in motion control systems because they provide real-time feedback, enabling machines to operate accurately, efficiently, and safely.
They are widely used in:
Industrial automation and robotics
CNC machining
Medical equipment (CT, MRI)
Semiconductor manufacturing
Transportation systems
Encoders act as the feedback backbone of automation systems by measuring:
Position
Speed (velocity)
Direction
Distance traveled
This feedback allows controllers to adjust motion dynamically, ensuring precision and repeatability.
Measure straight-line motion
Use a sensor moving along a scale
Common in CNC machines and precision stages

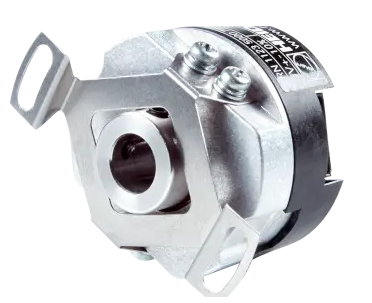

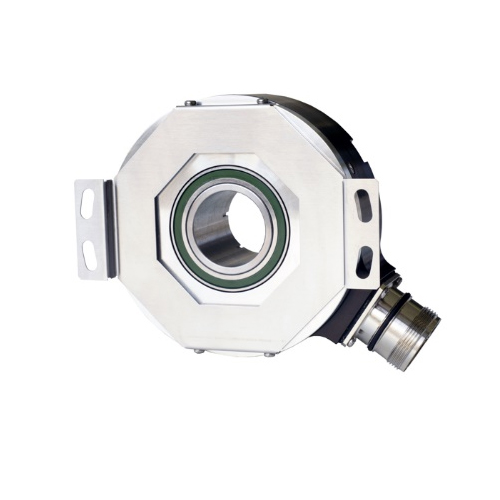

Measure rotational movement
Mounted on shafts or motors
Often used for speed monitoring and control
High-precision rotary encoders
Provide extremely accurate angular positioning
Used in semiconductor and high-end machining
Key difference:
Rotary → speed-focused

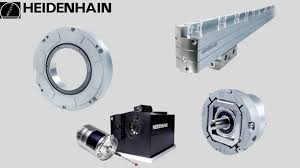

Angle → ultra-high precision positioning (HEIDENHAIN)
Measure relative movement from a reference point
Output pulses as motion occurs
Require homing (zero reference) after startup
Simpler and more cost-effective
Provide unique position values at all times
No need for homing after power loss
Ideal for high-precision or critical systems
Quick comparison:
Incremental → speed, simplicity, lower cost
Absolute → accuracy, reliability, no reset needed
Use light passing through coded discs
Very high resolution and accuracy
Sensitive to contamination
Use magnetic fields and sensors
More robust, compact, and durable
Lower accuracy than optical
Trade-off:
Optical = precision
Magnetic = durability
Protected from dust, coolant, debris
Ideal for harsh industrial environments
Compact, high-speed capable
Used in clean, high-precision applications
When selecting or evaluating an encoder, consider:
Accuracy & resolution → positioning precision
Speed capability & bandwidth → dynamic response
Signal quality → noise and stability
Environmental resistance → temperature, contamination
Mechanical fit & size → integration into system
Interface compatibility → controller communication
These factors directly impact machine performance, reliability, and total cost of ownership (TCO).
Pulse-based (A/B channels)
Analog or digital (TTL, 1Vpp)
Widely compatible
Digital data (bits/bytes)
Higher data richness
Requires compatible communication protocols (e.g., serial interfaces)
Require high accuracy, repeatability, and synchronization
Use linear + rotary + angle encoders together
Need compact size + fast feedback
Typically use rotary encoders
Demand ultra-high precision and resolution
Prefer optical and angle encoders
Require sealed, rugged encoders
Define motion type
Linear vs rotational
Determine accuracy needs
Standard → rotary
Ultra-precision → angle/optical
Choose output type
Incremental → cost-effective, speed control
Absolute → precise positioning, no homing
Evaluate environment
Dust, vibration, temperature → sealed/magnetic
Check system compatibility
Controller interface & signal type
Consider lifecycle & cost
Reliability, maintenance, downtime impact
Encoders are essential for motion feedback and control
Selection depends on motion type, precision, environment, and interface
The biggest decision points are:
Linear vs rotary vs angle
Incremental vs absolute
Optical vs magnetic
Choosing the right encoder is not just a technical decision—it directly affects performance, reliability, and long-term cost efficiency.
