Programmable Logic Controllers (PLCs) are the core control units of modern industrial automation systems. They manage machines, production lines, and industrial processes by collecting input signals, executing control programs, and sending output commands to field devices.
Among global PLC manufacturers, Siemens SIMATIC PLCs are widely used in manufacturing, automotive, packaging, energy, and process industries because of their reliability, scalability, and powerful engineering software. Siemens offers multiple PLC platforms, including S7-1200, S7-1500, ET 200SP CPU, and legacy S7-300 systems, allowing engineers to select a controller based on application size, performance requirements, and future expansion needs.
However, choosing the right Siemens PLC can be challenging. Selecting a model that is too small may limit future upgrades, while choosing an oversized PLC may increase unnecessary costs.
This guide explains the key factors to consider when purchasing a Siemens PLC.
Before selecting a Siemens PLC model, the first step is to understand your machine or system requirements.
Important questions include:
How many input and output points are required?
What type of signals are used?
Is motion control required?
Are safety functions needed?
What communication protocols are required?
Will the system need future expansion?
A PLC selection should always start from the application, not from the PLC model itself.
For example:
A small packaging machine may only require a compact PLC.
A production line with multiple servo motors and distributed I/O may require a high-performance controller.
A large factory automation system may need a modular PLC architecture.
Siemens provides several SIMATIC PLC series for different industrial applications.

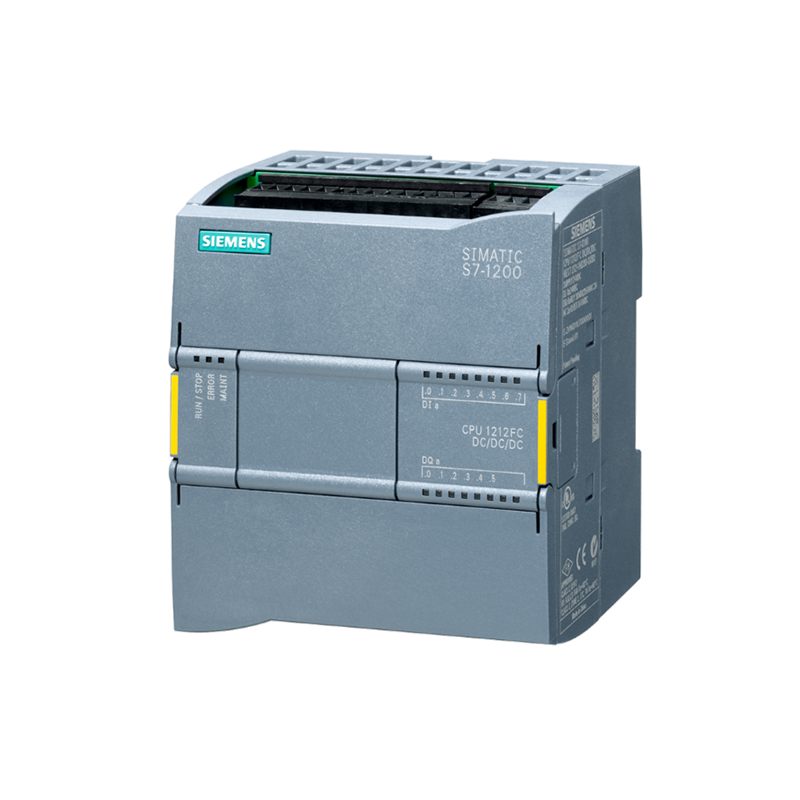

The SIMATIC S7-1200 is designed for compact automation systems and machine-level control. It combines CPU, communication interfaces, and integrated I/O in a compact design.
Typical applications include:
Packaging machines
Conveyor systems
Small assembly equipment
Water treatment systems
Building automation
Advantages of S7-1200:
Compact size
Lower hardware cost
Easy installation
Integrated PROFINET communication
Suitable for standalone machines
The S7-1200 is usually the preferred choice for applications with limited I/O and moderate control requirements. (西门子)

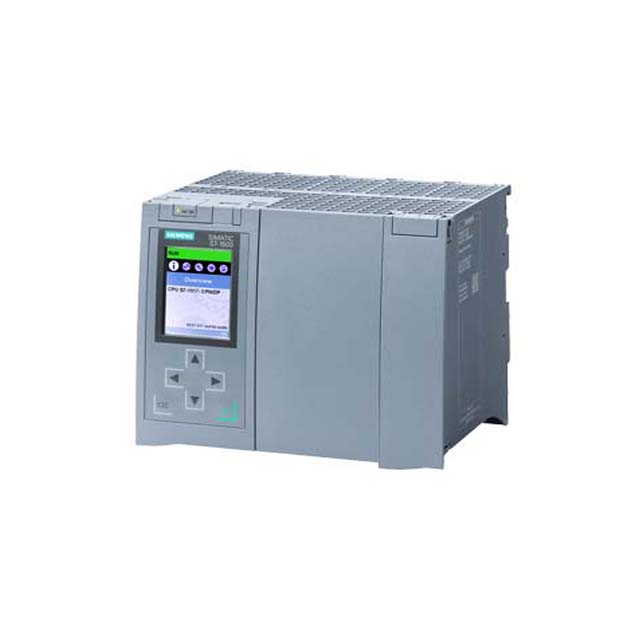

The SIMATIC S7-1500 is Siemens' advanced PLC platform for demanding automation applications.
It is designed for:
Large production lines
Complex machinery
Motion control systems
High-speed processing
Industrial plants
Compared with S7-1200, S7-1500 provides:
Higher processing performance
Larger memory capacity
More advanced diagnostics
Greater scalability
Support for complex motion and safety applications
The S7-1500 is suitable when system reliability, speed, and future expansion are important factors.
The ET 200SP platform combines PLC functionality with a highly modular I/O system.
It is ideal for:
Distributed automation systems
Compact control cabinets
Systems requiring many I/O points
Benefits include:
High-density modules
Flexible expansion
Reduced cabinet space
Easy maintenance
For applications where many devices are distributed throughout a machine or production line, ET 200SP can provide an efficient architecture.
The CPU is the “brain” of the PLC system. Choosing the correct CPU depends on processing requirements, memory, and communication needs.
Key CPU selection factors include:
High-speed applications require faster CPUs.
Examples:
Simple sequence control → standard CPU
Servo synchronization → advanced CPU
Complex calculations → high-performance CPU
The PLC program size depends on:
Number of control functions
Data processing requirements
Communication tasks
Recipe management
A machine that may expand in the future should have additional memory capacity.
Modern automation systems require communication with:
HMIs
Servo drives
Robots
Remote I/O
SCADA systems
Industrial networks
Common Siemens communication technologies include:
PROFINET
PROFIBUS
Industrial Ethernet
OPC UA
Modbus TCP
Selecting a PLC with suitable communication options can reduce integration difficulties.
I/O modules connect the PLC with field devices such as sensors, switches, valves, and motors.
The main types include:
Used for ON/OFF signals:
Push buttons
Limit switches
Proximity sensors
Safety switches
Used to control:
Solenoid valves
Relays
Contactors
Indicator lights
Used for continuous signals:
Temperature sensors
Pressure transmitters
Flow meters
Level sensors
Used for controlling:
Variable frequency drives
Control valves
Position controllers
When selecting I/O modules, always consider future expansion. A common practice is reserving approximately 15–20% additional I/O capacity for future modifications.
Many modern machines require precise motion control.
Applications include:
CNC machines
Robotics
Servo positioning systems
Pick-and-place machines
For basic motion control:
S7-1200 can handle simple positioning tasks.
For advanced applications:
S7-1500 with motion control functions is usually more suitable.
Examples requiring higher performance:
Multiple synchronized servo axes
High-speed positioning
Complex robotic movements
(西门子)
Safety is critical in industrial automation.
If your machine requires:
Emergency stop systems
Safety doors
Light curtains
Safe motion functions
you may need a Siemens Fail-Safe PLC (F-CPU).
Safety PLC systems can integrate safety logic directly into the automation program, reducing wiring complexity and improving system management.
Siemens PLC programming is mainly performed through TIA Portal (Totally Integrated Automation Portal).
TIA Portal integrates:
PLC programming
HMI configuration
Drive configuration
Network setup
Diagnostics
When selecting a PLC, make sure the hardware is compatible with your engineering software version.
Using the same engineering environment simplifies:
Project management
Troubleshooting
Maintenance
System upgrades
The correct choice depends on your project requirements rather than simply selecting the most powerful model.
For a small machine, S7-1200 can provide excellent value. For large-scale automation requiring advanced control, S7-1500 is usually the better long-term investment. (Siemens PLC US)
The cheapest PLC may not meet future requirements.
Consider:
Expansion costs
Engineering time
Downtime risks
A machine may require additional sensors, drives, or communication devices later.
Choosing a PLC with extra capacity can reduce future replacement costs.
An oversized PLC increases hardware and engineering costs without providing additional benefits.
A balanced selection is always the best approach.
Before purchasing, confirm:
✅ Application type✅ Required I/O quantity✅ CPU processing performance✅ Memory requirements✅ Communication interfaces✅ Safety requirements✅ Motion control needs✅ Expansion capability✅ Software compatibility✅ Budget considerations
Choosing the right Siemens PLC requires a clear understanding of your automation requirements, system complexity, and future development plans.
For compact machines and cost-sensitive projects, the Siemens S7-1200 is an excellent choice. For demanding automation systems requiring higher performance, scalability, and advanced functions, the Siemens S7-1500 provides a more powerful solution. Modular systems such as ET 200SP CPU are ideal for distributed and space-saving applications.
By carefully evaluating I/O requirements, processing power, communication needs, and expansion possibilities, engineers can select the most suitable Siemens PLC solution to achieve reliable, efficient, and future-ready industrial automation.
