The SIMATIC S7-200 series has been widely used for its compact size, reliability, and versatility in automating small to medium-sized machines and processes. It offers a range of CPUs with different capabilities, digital and analog I/O modules, communication modules, and a user-friendly programming environment.

Inquery Now

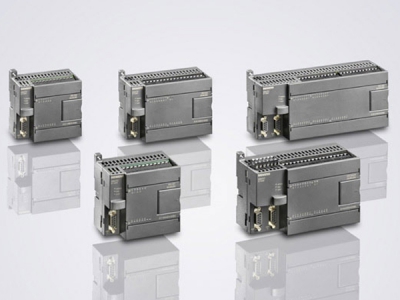

The SIMATIC S7-200 Micro PLC is self-contained:

Extremely compact but surprisingly capable - especially with regard to its real-time performance - it is a fast, powerful communication solution with easy-to-use hardware and software. But there are more features:

The SIMATIC S7-200 Micro PLC has a uniform modular design - not very big at the moment, but unlimited custom solutions in the future. All this makes the SIMATIC S7-200 Micro PLC a very efficient and economical solution for automation control within a compact performance range.。


Application field

Simple and automatic

SIMATIC S7-200Micro PLC for chemical tasks

The field of application of the SIMATIC S7-200 extends from the replacement of relays and contactors to more complex automation tasks in stand-alone, networked and distributed configurations. The S7-200 also increasingly provides access to areas where special electronics have previously been developed for economic reasons.

In addition to the comprehensive basic functions of five different CPUs, the modular system technology of the SIMATIC S7-200 also provides a series of scalable special expansion modules to meet the extremely high functional requirements of various needs.

Due to its various distinctive features, the S7-200 has been proven worldwide in applications covering various industries:

Small CPU for Simple Automation Tasks - If you want to change to an efficient solution to perform simple automation tasks very economically, this is the better small device. Can also be used in an extended temperature range.

CPU for More Complex Tasks 222 Scalable Small CPU - Capable compact package for more complex machine and small system solutions.

CPUs for Higher Communication and Computing Requirements - High-performance CPUs for complex tasks requiring speed and special communication capabilities.

The CPU for simple drive tasks - the CPU 224 version for easy implementation of simple drive tasks - has two interfaces, two analog inputs and one analog output, as well as two 100 kHz pulse outputs and two high-speed 200 kHz counters.

High-performance CPU for larger technical tasks - multifunctional high-performance CPU for complex automation tasks with expanded inputs and outputs and two RS485 interfaces.


SIMATIC S7-200 plays a unified and economical solution. Series features of the entire system

  • strong performance,
  • Optimal modularity and
  • Open communication.



The proven performance of the S7-200 makes it suitable for a wide variety of applications in the industrial sector:

  • Compact size - ideal for any application in tight spaces
  • Basic and advanced functions in all CPU models,
  • Massive program and data memory
  • Outstanding real-time response - full control of the entire process at all times, improving quality, efficiency and safety
  • Easy-to-use STEP 7-Micro/WIN engineering software - ideal for beginners and experts
  • Integrated R-S 485 interface or use as system bus
  • Extremely fast and precise sequence of operations and process control
  • Complete control of time-critical processes with time interruptions

Design and Function

optional module

  • Optimal modularity of 5 different CPUs in the performance range with comprehensive basic functions and integrated Freeport communication interface
  • A range of expansion modules for various functions:

- Digital/analog extension, upgradeable to specific requirements, PROFIBUS communication as a slave

- AS-Interface communication as master station

- Exact temperature measurement


-remote diagnosis

- Ethernet/Internet communication


Weighing module

  • HMI functions
  • STEP 7-Micro/WIN software with Micro/WIN add-on library
  • Compelling system engineering - currently characterized by precise dimensions and optimal solutions for the various requirements of complete automation tasks Main features
  • Highlight memory cards for data logging, recipe management, project savings with STEP 7-Micro/WIN, and file storage in various formats
  • PID auto-tuning function
  • 2 built-in serial ports for extended communication options, eg for use with devices from other manufacturers (CPU 224 XP, CPU 226)
  • CPU 224 XP with built-in analog input/output

Advanced technology down to the last detail ensures that our CPUs play an outstanding real-time response rate:

  • 4 or 6 independent hardware counters, 30 kHz each, 2 x 200 kHz with CPU 224 XP, eg for precise path monitoring via incremental encoders or high-speed recording of process events
  • 4 independent alarm inputs with input filter time of 0.2ms to program start - maximum process safety
  • Pulse capture function for applications with fast events greater than 0.2 ms
  • 2 pulse outputs, 20 kHz each, or 2 x 100 kHz for CPU 224 XP with pulse width modulation and pulseless setpoints - eg: for controlling stepper motors
  • 2 timed interrupts, starting at 1ms, adjustable in 1ms increments - for bumpless control of rapidly changing processes
  • Fast analog input - with 25 μs signal transitions, 12-bit resolution
  • Real Time Clock

Timed Interrupt

  • 1 to 255ms with 1 ms resolution
  • Example: After a quarter turn, the signal can be recorded and processed on the screw inserter at 3000 RPM. Very precise recording of eg tightening torques is possible to ensure optimal tightening of screws.


Fast Counter

  • Run independently of each other, other operations and program cycles
  • Interrupt triggers when a user-selectable calculated value is reached - 300 μs response time from detection of input signal to switching output
  • 4-edge evaluation when incremental position encoders are used for exact positioning
  • Modular scalability

Alarm Input

  • 4 independent inputs
  • For registering signals in quick succession
  • 200 μs–500 μs response time for signal detection / 300 μs for signal output
  • Response to positive and/or negative signal edges
  • Up to 16 interrupts in a queue, depending on priority
Our company is a distributor of Siemens S7-200 products. We can offer this series items with good price and delivery condition:
SIMATIC S7-200 series item numbers:
6ES7210-0AA00-0XB0 6ES7214-1CC01-0XB0 6ES7222-1BF00-0XA0 6ES7231-0HC00-0XA0 6ES7290-0AA00-0XA0
6ES7210-0BA00-0XB0 6ES7214-1DC01-0XB0 6ES7222-1BF22-0XA0 6ES7231-0HC22-0XA0 6ES7290-2AA00-0XA0
6ES7210-0CA00-0XB0 6ES7214-1GC01-0XB0 6ES7222-1BF22-0XA8 6ES7231-0HC22-0XA8 6ES7290-2BA00-0XA0
6ES7210-8XX00-6AA0 6ES7214-2AD23-0XB0 6ES7222-1EF00-0XA0 6ES7231-0HF22-0XA0 6ES7290-2CA00-0XA0
6ES7211-0AA21-0XB0 6ES7214-2AD23-0XB8 6ES7222-1EF22-0XA0 6ES7231-7PB22-0XA0 6ES7290-6AA20-0XA0
6ES7211-0AA22-0XB0 6ES7214-2AS23-0XB0 6ES7222-1HD22-0XA0 6ES7231-7PB22-0XA8 6ES7290-6BC50-0XA0
6ES7211-0AA23-0XB0 6ES7214-2AS23-0XB8 6ES7222-1HF00-0XA0 6ES7231-7PC22-0XA0 6ES7291-3AX00-0XA0
6ES7211-0BA21-0XB0 6ES7214-2BD23-0XB0 6ES7222-1HF22-0XA0 6ES7231-7PD21-0XA0 6ES7291-3AX20-0XA0
6ES7211-0BA22-0XB0 6ES7214-2BD23-0XB8 6ES7222-1HF22-0XA8 6ES7231-7PD22-0XA0 6ES7291-3BX00-0XA0
6ES7211-0BA23-0XB0 6ES7215-2AD00-0XB0 6ES7223-1BF00-0XA0 6ES7231-7PD22-0XA8 6ES7291-8BA00-0XA0
6ES7212-1AA01-0XB0 6ES7215-2BD00-0XB0 6ES7223-1BF22-0XA0 6ES7231-7PF22-0XA0 6ES7291-8BA20-0XA0
6ES7212-1AB21-0XB0 6ES7216-2AD00-0XB0 6ES7223-1BF22-0XA8 6ES7232-0HB00-0XA0 6ES7291-8GC00-0XA0
6ES7212-1AB22-0XB0 6ES7216-2AD21-0XB0 6ES7223-1BH00-0XA0 6ES7232-0HB22-0XA0 6ES7291-8GD00-0XA0
6ES7212-1AB23-0XB0 6ES7216-2AD22-0XB0 6ES7223-1BH22-0XA0 6ES7232-0HB22-0XA8 6ES7291-8GE20-0XA0
6ES7212-1AB23-0XB8 6ES7216-2AD23-0XB0 6ES7223-1BH22-0XA8 6ES7232-0HD22-0XA0 6ES7291-8GF23-0XA0
6ES7212-1BA01-0XB0 6ES7216-2AD23-0XB8 6ES7223-1BL00-0XA0 6ES7235-0KD00-0XA0 6ES7291-8GH23-0XA0
6ES7212-1BA10-0XB0 6ES7216-2AF21-0XB0 6ES7223-1BL21-0XA0 6ES7235-0KD22-0XA0 6ES7292-1AD20-0AA0
6ES7212-1BB21-0XB0 6ES7216-2AF22-0XB0 6ES7223-1BL22-0XA0 6ES7235-0KD22-0XA8 6ES7292-1AE20-0AA0
6ES7212-1BB22-0XB0 6ES7216-2BD00-0XB0 6ES7223-1BL22-0XA8 6ES7241-1AA22-0XA0 6ES7292-1AF20-0AA0
6ES7212-1BB23-0XB0 6ES7216-2BD21-0XB0 6ES7223-1BM22-0XA0 6ES7253-1AA22-0XA0 6ES7292-1AG20-0AA0
6ES7212-1BB23-0XB8 6ES7216-2BD22-0XB0 6ES7223-1BM22-0XA8 6ES7272-0AA20-0YA0 6ES7292-2AA00-0XA0
6ES7212-1CA01-0XB0 6ES7216-2BD23-0XB0 6ES7223-1EF00-0XA0 6ES7272-0AA30-0YA0 6ES7292-3AX00-0XA0
6ES7212-1DA01-0XB0 6ES7216-2BD23-0XB8 6ES7223-1HF00-0XA0 6ES7272-0AA30-0YA1 6ES7297-1AA20-0XA0
6ES7212-1FA01-0XB0 6ES7216-2BF21-0XB0 6ES7223-1HF22-0XA0 6ES7272-0AA31-0YA0 6ES7297-1AA23-0XA0
6ES7212-1GA01-0XB0 6ES7216-2BF22-0XB0 6ES7223-1HF22-0XA8 6ES7272-0SB20-0AA0 6ES7298-0AA20-0AA3
6ES7214-1AC01-0XB0 6ES7221-1BF00-0XA0 6ES7223-1PH00-0XA0 6ES7272-1AA10-0YA0 6ES7298-0AA20-0BA3
6ES7214-1AD21-0XB0 6ES7221-1BF10-0XA0 6ES7223-1PH21-0XA0 6ES7272-1AA10-0YA1 6ES7298-0AA40-0AA0
6ES7214-1AD22-0XB0 6ES7221-1BF22-0XA0 6ES7223-1PH22-0XA0 6ES7272-1AF00-7AA0 6ES7298-8FA24-8AH0
6ES7214-1AD23-0XB0 6ES7221-1BF22-0XA8 6ES7223-1PH22-0XA8 6ES7272-1BA10-0YA0 6ES7298-8FA24-8BH0
6ES7214-1AD23-0XB8 6ES7221-1BH22-0XA0 6ES7223-1PL00-0XA0 6ES7272-1BF00-7AA0 6ES7298-8FA24-8CH0
6ES7214-1BC01-0XB0 6ES7221-1BH22-0XA8 6ES7223-1PL21-0XA0 6ES7274-1XF00-0XA0 6ES7298-8FA24-8DH0
6ES7214-1BC10-0XB0 6ES7221-1EF00-0XA0 6ES7223-1PL22-0XA0 6ES7274-1XH00-0XA0 6ES7298-8FA24-8EH0
6ES7214-1BD21-0XB0 6ES7221-1EF22-0XA0 6ES7223-1PL22-0XA8 6ES7274-1XK00-0XA0 6ES7298-8FA24-8FH0
6ES7214-1BD22-0XB0 6ES7221-1JF00-0XA0 6ES7223-1PM22-0XA0 6ES7277-0AA21-0XA0 6ES7298-8FA24-8FH8
6ES7214-1BD23-0XB0 6ES7222-1BD22-0XA0 6ES7223-1PM22-0XA8 6ES7277-0AA22-0XA0 6ES7298-8GA00-8XH0
