Linear Actuators: Types, Applications, and Advantages

Linear actuators serve as the silent force behind numerous processes across various industries, converting energy into controlled motion or force. This article explores the three primary methods through which linear actuators operate: hydraulics, pneumatics, and electricity.

Pneumatic Actuators

Pneumatic actuators feature a simple design with a piston inside a hollow cylinder, driven by pressurized air supplied by a manual pump or external compressor. This pressure propels the cylinder along the piston's axis, generating linear force for diverse applications.

Advantages of Pneumatic Actuators

• Simplicity: Cost-effective solution for high-force and high-speed applications.
• Temperature Resistance: Suitable for diverse environments due to wide temperature range tolerance.
• Safety: Inherently safe with no hazardous materials or magnetic interference.
• Cost-Effectiveness: Lightweight, durable, and less expensive than hydraulic and electric alternatives, with minimal maintenance requirements.

Disadvantages of Pneumatic Actuators

• Pressure Loss and Air Compressibility: Reduced efficiency due to pressure losses and air compressibility.
• Specific Sizing: Require precise sizing and additional proportional regulators and valves, increasing complexity and cost.
• Air Contamination: Susceptible to contamination by oil or lubrication in the air, leading to downtime and maintenance issues.

Hydraulic Actuators

Hydraulic actuators, similar to pneumatic actuators, use incompressible hydraulic fluid supplied by a pump instead of pressurized air, excelling in high-force applications.

Advantages of Hydraulic Actuators

• High Force: Capable of generating substantial forces, ideal for heavy-duty tasks.
• Incompressibility: Hydraulic fluids maintain force and torque constant without additional fluid or pressure.
• Flexible Footprint: Minimal power loss between actuators and pumps/motors.

Disadvantages of Hydraulic Actuators

• Fluid Leaks: Prone to leaks, leading to efficiency loss and potential damage.
• Complexity: Intricate linear motion subsystems requiring significant operator involvement in setup, monitoring, and maintenance.
• Efficiency: Typically operate with 40%-55% efficiency and may produce noise.

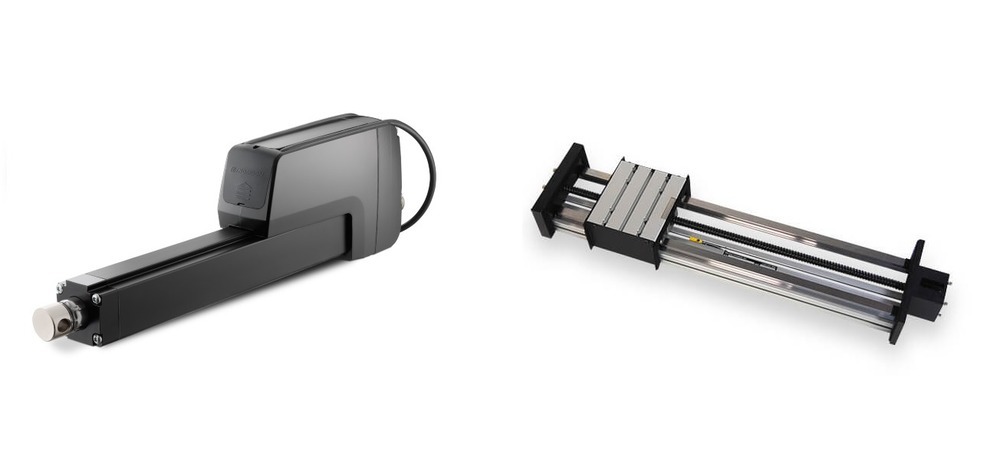

Electric Actuators

Electric actuators transform rotary motion into linear movement using a DC or AC motor, offering precise control, programmability, and low maintenance.

Advantages of Electric Actuators

• Accuracy and Repeatability: High precision and repeatability in motion control.
• Programmability: Customizable motion profiles for versatility.
• Quiet Operation: Quieter compared to pneumatic and hydraulic systems.
• Clean and Safe: No hazardous fluids involved, suitable for various environments.
• Efficiency: High efficiency and lower total cost of ownership due to minimal maintenance.

Disadvantages of Electric Actuators

• Initial Cost: Higher initial investment compared to other types.
• Environmental Limitations: Not universally suitable for all environments.
• Overheating: Continuous operation may lead to overheating, affecting performance.

Applications of Linear Actuators

Linear actuators find applications across various industries:

• Industrial Automation: Conveyor belt control, robotic arm movement, and precise equipment positioning.
• Robotics: Precise movement and control of robotic arms, grippers, and joints.
• Medical and Healthcare: Hospital beds, dental chairs, and surgical tables for smooth and controlled movement.
• Automotive: Adjustable seats, headrests, sunroofs, and trunk opening mechanisms.
• Home Automation: Control window blinds, door locks, and adjustable furniture.

Conclusion

The choice between pneumatic, hydraulic, and electric linear actuators depends on specific project requirements, each offering distinct advantages and disadvantages. As technology evolves, linear actuators will continue to drive progress and efficiency across diverse sectors.
