As industrial automation continues to develop, manufacturers are demanding higher levels of accuracy, speed, and reliability from machine tools and robotic systems. Traditional position measurement technologies often focus on a single movement direction, but modern applications such as semiconductor manufacturing, precision machining, and industrial robotics require multi-axis error compensation and real-time motion feedback.
HEIDENHAIN, a global leader in precision measurement and motion control technology, has developed advanced encoder solutions that overcome the limitations of conventional systems.
Traditional linear encoders typically measure movement along only one axis. However, real-world machine movements are affected by multiple types of errors, including:
Linear displacement errors
Angular deviations
Mechanical deformation
Guideway inaccuracies
Thermal effects
In high-precision equipment, even small errors in one axis can influence the accuracy of other axes. Conventional encoders may not detect these additional deviations, limiting overall system performance.
HEIDENHAIN’s technology allows one encoder system to measure multiple degrees of freedom simultaneously. Instead of requiring separate measuring devices for each movement direction, multi-dimensional encoders can capture additional positional information and compensate for mechanical errors directly.
A machine component in space can move along six degrees of freedom:
X, Y, Z translational movements
RX, RY, RZ rotational movements
By measuring more than one direction with a single encoder, complex motion systems can achieve higher accuracy with a simpler mechanical design. (Drives Guide)

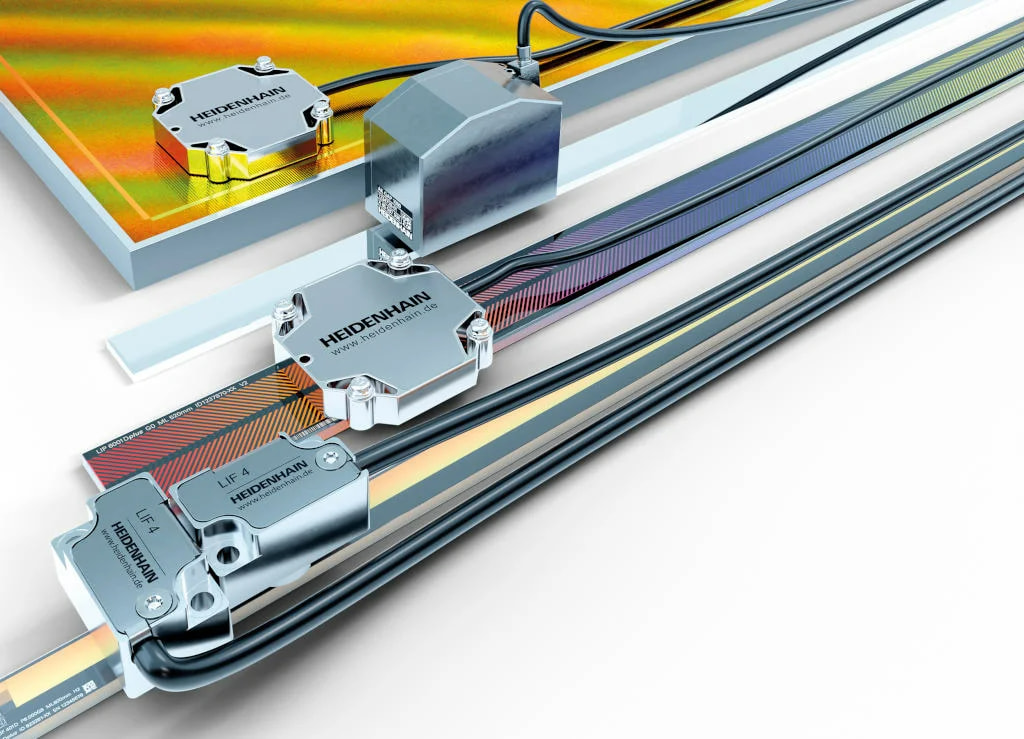

A key example of HEIDENHAIN’s multi-dimensional measurement technology is the Dplus encoder series.
Unlike conventional encoders that measure only one position value, Dplus encoders can detect multiple movement directions using specially designed measuring standards and scanning heads.
The technology uses advanced optical measurement principles, including:
Fine graduated scales
Interference-based signal generation
High-resolution signal processing
This allows the encoder to provide highly accurate position feedback while reducing the number of components required in complex motion systems. (Drives Guide)
For example, a single Dplus encoder system with multiple scanning heads can measure several degrees of freedom on one machine axis, simplifying system architecture and reducing installation complexity. (Drives Guide)
One of the biggest advantages of technology is improved positioning accuracy.
By directly measuring additional error movements, the control system can better understand the actual position of machine components and compensate for deviations.
This is especially valuable in industries requiring extremely precise manufacturing, including:
Semiconductor production
Precision machining
Electronics manufacturing
Advanced robotics
Traditional multi-axis measurement systems often require multiple encoders, cables, and signal-processing units.
Multi-dimensional encoders reduce the number of components by combining multiple measurement functions into one compact solution.
Benefits include:
Less installation space
Reduced wiring
Easier system integration
Lower maintenance requirements
The EnDat3 interface further simplifies system design by allowing multiple position values to be transmitted through a single cable connection. (HEIDENHAIN)
High-speed manufacturing requires not only accuracy but also fast response.
By providing real-time feedback of multiple movement parameters, multi-dimensional encoders help motion controllers react faster to errors and maintain stable operation during dynamic movements.
This is especially important for:
High-speed machining centers
Wafer manufacturing equipment
Robotic automation systems
Industrial robots are widely used in automotive manufacturing, aerospace, electronics, and logistics. However, achieving extremely accurate robot positioning remains challenging due to:
Gear transmission errors
Joint backlash
Thermal changes
Although robots can achieve excellent repeatability, their absolute positioning accuracy is often lower because small mechanical errors accumulate across multiple joints. (HEIDENHAIN)
HEIDENHAIN improves robot accuracy through advanced encoder technologies that provide precise feedback at robot joints.
The Tool Center Point (TCP) represents the exact working position of a robot tool. Accurate TCP positioning is essential for applications such as:
Robotic welding
Precision assembly
Drilling and machining
Aerospace manufacturing
Traditional robot systems mainly use motor-side encoders. However, errors introduced by gears and mechanical transmission components may affect the actual tool position.
HEIDENHAIN’s advanced encoder solutions can provide additional position feedback closer to the robot output side, allowing the control system to compensate for mechanical inaccuracies and improve TCP accuracy. (HEIDENHAIN)
The KCI 120 Dplus encoder is an example of HEIDENHAIN’s innovative approach to robot positioning.
This inductive encoder can measure position both before and after the robot joint gearing system. By comparing these two measurements, the system can compensate for errors caused by gear mechanisms.
Key benefits include:
Higher robot positioning accuracy
Improved joint control
Better performance for collaborative robots
Support for safety-related applications through EnDat communication technology
(HEIDENHAIN)
This technology creates new possibilities for robots that require higher precision, such as:
Precision assembly robots
Collaborative robots
Semiconductor handling robots
Robotic machining systems
Modern semiconductor production requires extremely small structures and highly accurate positioning.
Multi-dimensional encoder technology helps improve:
Wafer positioning accuracy
Machine throughput
Process stability
Precision machining requires accurate axis positioning and error compensation.
HEIDENHAIN encoders help CNC machines achieve:
Higher machining accuracy
Better surface quality
Improved repeatability
Robotic applications benefit from improved joint feedback and positioning accuracy.
Typical uses include:
Automotive production
Automated machining
As factories become more intelligent, accurate measurement feedback becomes increasingly important for:
Digital manufacturing
Smart factories
Automated inspection systems
HEIDENHAIN’s multi-dimensional measurement technology represents a significant advancement in precision motion control. By expanding encoder capabilities beyond traditional single-axis measurement,
For industrial robots, HEIDENHAIN’s advanced encoder solutions improve Tool Center Point accuracy by providing more precise joint position feedback and compensating for mechanical errors.
As industries continue to demand higher precision in semiconductor manufacturing, robotics, and advanced automation, high-performance measurement technologies such as HEIDENHAIN encoders will play an increasingly important role in the future of intelligent manufacturing.
