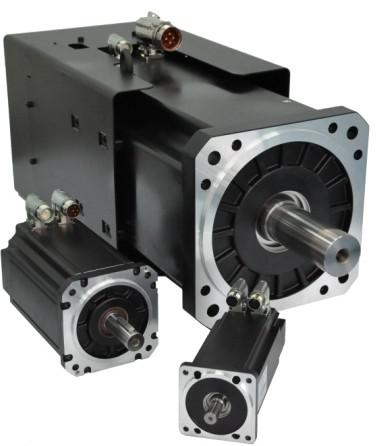

The introduction of the application of encoders in servo motors

Encoders are commonly used in servo motors to provide feedback on the position, speed, and direction of the motor's output shaft. The encoder is usually attached to the motor's shaft and consists of a rotating disk with slots or marks on it and a sensor that detects the position of those marks.
As the motor shaft rotates, the encoder sends signals to the motor controller indicating the precise position of the shaft. This feedback allows the motor controller to adjust the motor's output to maintain the desired position, speed, and direction.
With the use of encoders, servo motors can achieve high accuracy and precision in controlling the motion of a system. The encoder feedback allows the servo motor to compensate for any errors in the system, such as external disturbances, mechanical wear, or variations in load conditions. This enables servo motors to achieve highly precise positioning and motion control in a wide range of applications, such as robotics, automation, CNC machining, and manufacturing equipment.

Here are some examples of how servo motors with encoders are used in various applications:

  1. Robotics: Servo motors with encoders are used in various types of robots, including industrial robots, humanoid robots, and mobile robots. The encoders provide accurate feedback on the position and movement of robot joints and end-effectors, allowing for precise control of the robot's motion and manipulation of objects.

  2. CNC Machining: In CNC (Computer Numerical Control) machines, servo motors with encoders are used to control the movement of the cutting tools. The encoders provide feedback on the tool's position and speed, allowing for precise control of the cutting process and the creation of complex shapes.

  3. Automation: Servo motors with encoders are widely used in automation systems for manufacturing, packaging, and assembly. The encoders allow for precise control of the movement of conveyor belts, robotic arms, and other automation equipment, ensuring accurate positioning and movement of parts and products.

  4. Medical Equipment: Servo motors with encoders are used in various medical equipment applications, such as MRI machines, X-ray machines, and surgical robots. The encoders provide precise feedback on the position and movement of the equipment, allowing for accurate and safe operation.

  5. Aerospace and Defense: Servo motors with encoders are used in aerospace and defense applications, such as satellites, drones, and missile systems. The encoders provide accurate feedback on the position and movement of the systems, allowing for precise control and navigation.

How to install the encoder in the servo motors and how to match the servo drives?

        The installation of an encoder in a servo motor may vary depending on the specific model and design of the motor. However, here are some general steps that are typically followed:

  1. Choose the appropriate encoder: First, you need to select an encoder that is compatible with your servo motor. Consider the encoder's resolution, accuracy, and output signal type.

  2. Prepare the motor: Remove any covers or guards from the motor to access the motor shaft. Ensure that the shaft is clean and free from any debris.

  3. Install the encoder: Attach the encoder to the motor shaft using the appropriate mounting method. The encoder should be securely fastened and aligned with the motor shaft.

  4. Wire the encoder: Connect the encoder output signals to the appropriate terminals on the motor controller. Follow the manufacturer's instructions for wiring the encoder correctly.

  5. Test the system: Power up the servo motor and controller and test the encoder feedback to ensure that it is working correctly. Check that the motor is responding accurately to position commands and that the encoder readings are consistent and stable.

Matching servo drives to a servo motor is an important step in ensuring that the system operates correctly and efficiently. Here are some general steps to follow:

  1. Determine the motor specifications: Obtain the motor's specifications, such as rated voltage, rated speed, and rated torque. These specifications are usually listed in the motor's datasheet.

  2. Calculate the required drive specifications: Using the motor's specifications, calculate the required drive specifications, such as rated voltage, rated current, and maximum frequency. You can use the manufacturer's specifications or software tools to calculate the values.

  3. Choose a compatible drive: Select a drive that meets or exceeds the calculated specifications. Consider other factors such as the operating environment, communication interface, and feedback compatibility.

  4. Configure the drive: Follow the manufacturer's instructions to configure the drive's parameters to match the motor's specifications. Adjust the settings for maximum efficiency and performance.

  5. Test the system: After configuring the drive, test the system to ensure that the motor is responding correctly to the drive commands. Check that the motor is operating within its specified range and that the feedback signals are stable and accurate.
