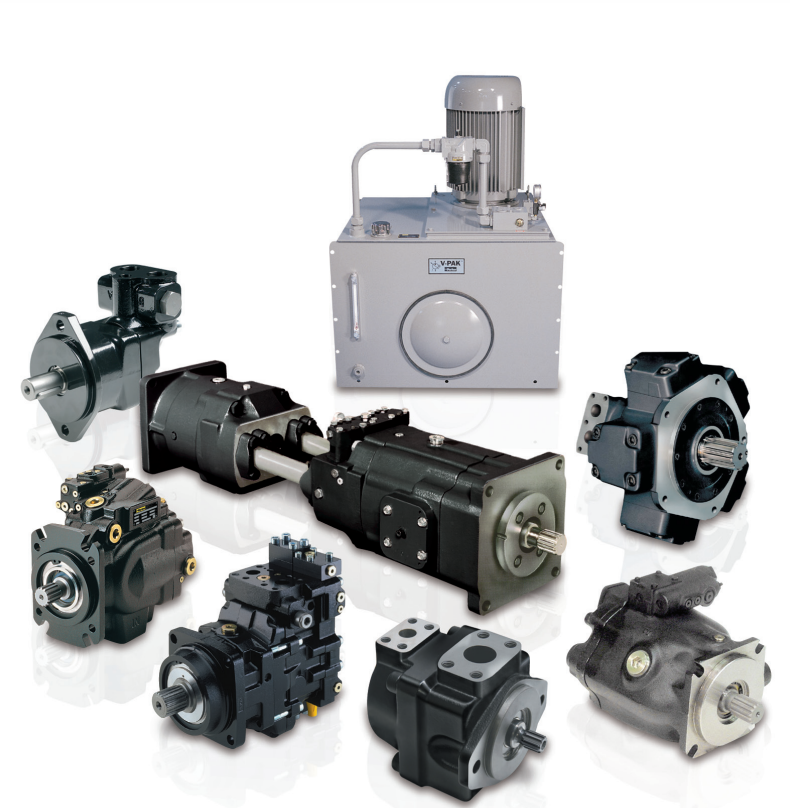

Understanding Hydraulic Pumps: Principles and Selection for Different Environments

Hydraulic pumps are essential components within hydraulic systems, tasked with supplying pressurized liquid to enable the system's operation. These pumps serve as a bridge between mechanical energy, derived from power sources like electric motors or internal combustion engines, and the pressure energy of hydraulic fluids. Depending on the application's needs, hydraulic pumps can be classified into two main types: variable pumps, which allow for flow adjustment, and quantitative pumps, with a fixed flow rate.

In hydraulic systems, three common types of pumps are employed, each offering distinct characteristics:

  1. Gear Pump:

    • External Gear Pump: Resilient to oil variations, featuring a simple design, and cost-effective. However, it generates substantial pulsation and noise.
    • Internal Gear Pump: Like the external gear pump, it's unfazed by oil inconsistencies but comes with a higher cost. It minimizes pulsation and noise levels.
  2. Vane Pump:

    • Single-Acting Vane Pump: Offers variable volume, suitable for low-pressure applications, yet exhibits radial unbalanced forces and higher noise levels.
    • Double-Acting Vane Pump: Sensitive to oil quality, compact, and maintains a consistent flow. It is immune to radial unbalanced forces and operates with reduced noise.
  3. Piston Pump:

    • Known for its high-pressure capabilities and variable volume feature, piston pumps are responsive to oil quality but tend to be noisy.

As the working environment varies, the choice of hydraulic pump becomes critical. To aid in selecting the appropriate pump for different scenarios, consider the following criteria:

  1. Variable Requirement: If variability in flow is necessary, consider options like radial piston pumps, axial piston pumps, or single-acting vane pumps.

  2. Working Pressure: Different pumps are designed for varying pressure levels. Piston pumps handle high pressures, often reaching 31.5MPa. Vane pumps can manage medium pressures, with capabilities up to 16MPa, while gear pumps are suitable for lower pressures, but can be adapted for higher pressures, up to 21MPa, spanning the mid to high range.

  3. Working Environment: Assess the pollution resistance of the working environment. Gear pumps offer the highest resistance to pollution, followed by vane pumps. Piston pumps, while effective, may not perform as well in environments with high pollution levels.

  4. Noise: For applications requiring low noise output, consider internal gear pumps, double-acting vane pumps, or screw pumps. Double-acting vane pumps and screw pumps provide a uniform flow, minimizing pulsations.

  5. Efficiency: When evaluating efficiency, axial piston pumps generally exhibit the highest total efficiency, followed by vane pumps, with gear pumps trailing. Within a specific pump category, those with larger displacements tend to yield higher total efficiency, while pumps with the same displacement achieve peak efficiency under rated operating conditions.

Selecting the right hydraulic pump is essential to ensure optimal performance and longevity in various environments. By considering the factors mentioned above, you can make an informed choice that aligns with the specific requirements of your application.
