What Components do Industrial Robotic Arms Include?

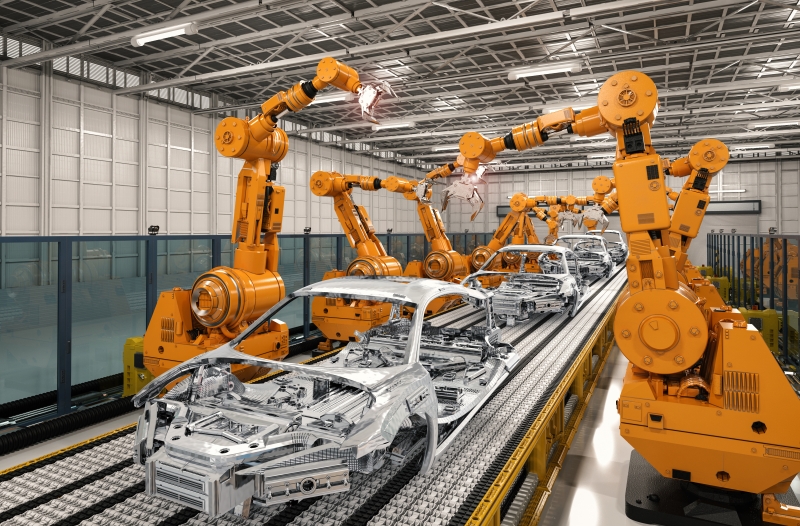

Industrial robotic arms are sophisticated machines designed to perform a variety of tasks in manufacturing and other industrial settings. They typically include the following key components:


1. Manipulator/Arm

The manipulator, or the robotic arm itself, is typically composed of several rigid segments connected by joints, mimicking the human arm's structure. It usually includes the following parts:

  • Base: The stationary part of the arm that anchors it to the ground or a work surface.
  • Links: The rigid segments that make up the arm.
  • Joints: The points of rotation or linear motion that connect the links. Common types include:

2. End Effector

The end effector is the tool attached to the end of the robotic arm, customized for specific tasks. Common types include:

  • Grippers: For picking and placing objects, can be mechanical, vacuum, or magnetic.
  • Welding Torches: For welding applications.
  • Spray Guns: For painting or coating.
  • Screwdrivers/Drills: For assembly operations.
  • Sensors/Probes: For inspection and measurement tasks.

3. Actuators

Actuators are devices that create motion in the robotic arm's joints. Types of actuators include:

  • Electric Motors: Common in most industrial robots, including stepper motors and servo motors, offering precise control.
  • Hydraulic Cylinders: Provide strong force for heavy-duty applications, using pressurized fluid.
  • Pneumatic Cylinders: Use compressed air for fast and repetitive movements, though less precise than electric or hydraulic actuators.

4. Sensors

Sensors provide feedback to the control system to enhance precision and adaptability. Types of sensors include:

  • Position Sensors: Encoders and resolvers measure the exact position of each joint.
  • Force/Torque Sensors: Measure the forces and torques applied at the end effector.
  • Vision Systems: Cameras and image processors enable the robot to see and interpret its environment.
  • Proximity Sensors: Detect the presence of objects nearby, essential for collision avoidance.
  • Touch Sensors: Allow the robot to detect physical contact with objects.

5. Controller

The controller is the computational unit that directs the robot’s operations. Key components and functions include:

  • CPU: The central processing unit that runs the control algorithms.
  • Memory: Stores the robot’s programming and operational data.
  • Control Software: Provides the interface for programming and controlling the robot, often including real-time operating systems for precise timing.
  • Motion Control Algorithms: Calculate the required movements and trajectories.

6. Power Supply

The power supply provides the necessary energy for all robotic components. Types include:

  • Electrical Power Supplies: Convert AC to DC power for electric actuators and controllers.
  • Hydraulic Power Units (HPUs): Generate and manage the high-pressure fluid required for hydraulic actuators.
  • Pneumatic Systems: Compress and regulate air for pneumatic actuators.

7. Transmission Systems

Transmission systems transfer the actuation force to the joints and end effector. Components include:

  • Gears: Increase torque and reduce speed, providing mechanical advantage.
  • Belts and Chains: Transfer power between components, often used where flexibility and compact design are needed.
  • Ball Screws: Convert rotary motion to linear motion with high precision.

8. Base

The base is the stationary platform that supports the robotic arm. It often includes:

  • Mounting Interfaces: For securing the robot to the floor or a workbench.
  • Integrated Components: Such as controllers and power supplies in some compact designs.

9. Control Interface

The control interface allows human operators to interact with and program the robot. Types of interfaces include:

  • Teach Pendants: Handheld devices with buttons and a screen for manual programming and control.
  • Graphical User Interfaces (GUIs): Software on computers or tablets that provides an intuitive way to program and monitor the robot.
  • Programming Languages: Specific to robots (e.g., RAPID for ABB robots, KRL for KUKA robots) or more general languages like Python and C++.

10. Communication Systems

Communication systems enable the robot to connect with other machines and systems. Common protocols and methods include:

  • Ethernet: For high-speed, reliable communication.
  • Fieldbus Systems: Such as PROFIBUS, DeviceNet, and CAN bus, for real-time industrial communication.
  • Wireless Communication: For flexible and remote operations, often using Wi-Fi or Bluetooth.
  • Industrial IoT Integration: Enabling connectivity with broader smart factory systems for data exchange and process optimization.

These components work together to form a highly versatile and functional robotic system capable of performing a wide range of industrial tasks with precision and efficiency.
