PRECIZIKA A110 Angle Encoder DatasheetThe PRECIZIKA A110 angle encoder has several features and advantages that make it a superior choice for high-precision angle measurement applications. Some of these features and advantages include:
High resolution:
Accuracy
Low error motion
High speed capability
Non-contact design
Compact and robust design
Easy integration
| Number of output pulses per revolution | 18000-1800000 |
| Line number on disc (z) | 18000 |
| Reference signal | standard: 1 per shaft revolution distance coded: 36 per shaft revolution |
| Maximum shaft speed | 5000 rpm |
| Maximum shaft load | axial: 10 N radial: 10 N |
| Accuracy grades | ± 5.0 arc. sec |
| Starting torque at 20°C | ≤ 0.01 Nm |
| Rotor moment of inertia | < 20 x 10-6 kgm2 |
| Protection (IEC 529) | IP64 |
| Maximum weight without cable | 0.7 kg |
| Operating temperature | 0…+50°C |
| Storage temperature | -30…+80°C |
| Maximum humidity (non-condensing) | 98% |
| Permissible vibration (55 to 2000 Hz) | ≤ 100 m/s² |
| Permissible shock (11 ms) | ≤ 300m/s² |

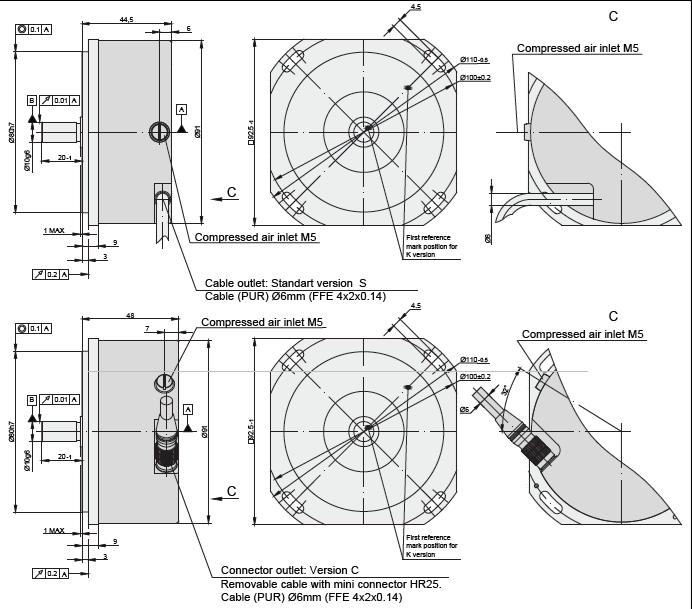

A110 – X1 -X2 -X3 -X4 -X5/X6
| Output Signal Version (X1) | Pulse Number per Revolution (X2) | Reference Signal (X3) | Cable or Connector Outlet (X4) | Cable Length (X5) | Connector Type (X6) |
| A AV F |
18000 … 1800000* *only F signal version for >18000 pulses |
S – one per revolution K – 36 per revolution, distance coded |
S – version S (cable outlet) C – version C (connector outlet) |
AR01 – 1m AR02 – 2m AR03 – 3m … |
W – without connector B12 – round, 12 pins C9 – round, 9 pins C12 – round, 12 pins D9 – flat, 9 pins D15 – flat, 15 pins RS10 – round, 10 pins ONC – round, 10 pins |
