Classification and characteristics of machine tool servo motion control systems
Sep 04, 2023
Classification and characteristics of machine tool servo motion control systems
servo motion control

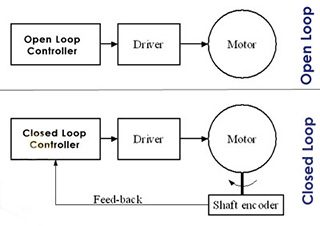

systems can be divided into open loop servo systems, semi-closed loop servo systems, and closed-loop servo systems:
1. Open loop servo system
The open-loop servo system, in general, only has input and output without feedback, and its driving components are mainly power stepper motors or hydraulic pulse motors. The essence of the working principle of these two driving components is the transformation from digital pulses to angular displacement. It does not use position detection components to achieve positioning but relies on the driving device itself, and the angle rotated is proportional to the number of command pulses; The motion speed is determined by the frequency of the feed pulse.
The open loop servo system has a simple structure and is easy to control, but has poor accuracy, unstable low speed, and low torque at high speed. In the past, it was generally used on light-load CNC machine tools with little change in load or economical CNC machine tools. However, due to the development of technology and market demand, it is no longer suitable for large, high-speed, high torque, and high-precision servo systems.
2. Semi closed-loop servo system
The position detection component is not directly installed on the final moving component of the feed coordinate but undergoes position conversion through mechanical transmission components in the middle, which is called indirect measurement. That is to say, a part of the coordinate motion transmission chain is outside the position closed-loop, and the transmission error outside the loop is not compensated by the system, so the accuracy of this servo system is lower than that of the closed-loop system.
The control structures of semi-closed loop and closed loop systems are consistent, with the only difference being that the closed loop system includes a large number of mechanical transmission components, and transmission errors can be compensated. In theory, the accuracy can be very high. However, due to the influence of mechanical deformation, temperature changes, vibration, and other factors, the system stability is difficult to adjust. In addition, after the machine tool has been running for a period of time, due to the wear and deformation of mechanical transmission components, as well as changes in other factors, it is easy to change the stability and accuracy of the system. Therefore, there are currently many uses of semi-closed loop systems. Only use a fully closed loop servo system on high-precision CNC machine tools with high tightness of transmission components, stable performance, and little variation in temperature difference during use.
3. Closed loop servo system
A closed-loop servo system is an error controlled servo system. The error of the CNC machine tool feed system is the difference between the position command output by the CNC and the actual position of the machine tool workbench (or tool holder). The motion execution components of the closed-loop system cannot reflect the position of the motion, so a position detection device is required. The device measures the actual displacement or position and feeds the measured value back to the CNC device. It is compared with the command to obtain the error, which in turn constitutes a closed-loop position control.
Due to the feedback control of the closed-loop servo system, the accuracy of the feedback measurement device is very high. Therefore, the errors of the system transmission chain, the errors of various components in the loop, and the errors caused by movement can be compensated, greatly improving the following and positioning accuracy.
